Providing new
solutions for Extrusion Monitoring and Quality Control.
In today's highly competitive marketplace it is crucial
that you not only deliver quality products, but maintain quality records on the process
which was used to produce these products. You expect no less from your suppliers and your
customers expect no less from you.
Enter, Insight the new
Extrusion Process Monitor system from LTD, a combination of state of the art hardware and
Windows® XP software which can be tailored to your specific extrusion process. Insight
provides you with a clear Real-time Process View of your extrusion run while logging data
from all process variables at a rate of once per second.
Insight Components

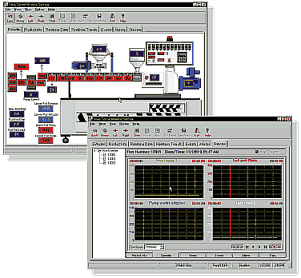

The Extruder page
The Extruder Page is your main view of the actual
extrusion process. All measured parameters are clearly presented to the operator and each
process parameter is color coded based on user defined Hi & Lo alarm limits. Any
process variable can be displayed in a Data Strip view, Analog Meter view or Graphic Trend
view directly on the Extruder Page.
The Product info page
The Product Info page is used to enter information about
your extrusion run. This information is stored with your data files for later recall.
The Realtime data page
The Realtime Data page provides a digital snapshot of
the current run data along with alarm settings for all process variables. This snapshot
can be sent to the printer at any time during a run.
The Realtime trends page
The Realtime Trends page provides a graphic display of up to 4 process variables at
one time. These plots can also be expanded to a full screen overlay view. The Insight
quick-zoom feature allows you to quickly zoom and expand critical run time data plots.
|
 |
The Alarm & Events pages
The Alarm and Events pages ensure that a complete history of the extrusion run is logged
for future review. The Alarm page automatically logs any process variable which enters
either a Hi or Lo alarm condition. This information is logged along with the run time,
operator, and alarm value. The Events page allows the operator to log comments and events
during the extrusion run.
Data Review
The Insight Review package allows you to recall data from previous extrusion runs
and generate reports on all aspects of the run along with graphic data plots.
Remote Access Capability
All Insight systems ship with a remote control access package which can be used for
a variety of functions. These include remote service support, data file transfer, easy
upgrades, and remote viewing of your extrusion process. |
